Skylight @ MERCURY User Guide

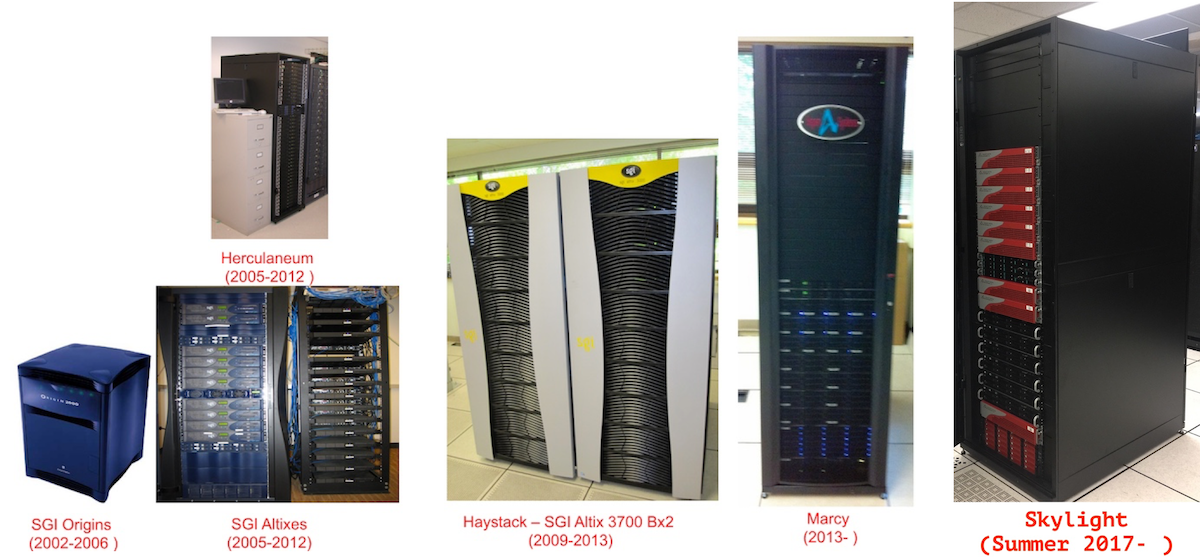

Skylight is MERCURY’s newest HPC acquisition purchased using funds from an NSF MRI grant. Its operation and hosting is generously supported by the Offfice of Furman’s Vice President for Academic Affairs and Provost. Skylight is named after one of the peaks on the Adirondack mountains. This follows a naming tradition dating back to Marcy (2013- ), Haystack (2009-2013), Saddleback, Iroquois, Avalanche and many others.
This system is a shared HPC resource intended to support the computational needs of members of MERCURY Consortium. Please send all questions and comments to support@mercuryconsortium.org. If you already have an account on Marcy, you will also have access to Skylight. If students need a new account, we can create one at the request of a MERCURY faculty member. Advisors can e-mail the student’s full name and email address to support@mercuryconsortium.org to request an account.
-
1 Master/login node: 20 Intel E5-2640v4 2.4GHz cores, 128GB RAM, 1 TB mirrored disk
-
1 Storage (I/O) node: 20 Intel E5-2640v4 2.4GHz cores, 64GB RAM, 23 TB disk array
-
22 STDMEM compute nodes (node01-22): 20 Intel E5-2640v4 2.4GHz cores, 128GB RAM, 1 TB disk
-
3 HIMEM compute nodes (himem01-03): 28 Intel E5-2680v4 2.4GHz cores, 512GB RAM, 1 TB disk
-
6 GTX1080 GPU compute nodes (gpu01-06): 20 Intel E5-2640v4 2.4GHz cores, 64GB RAM, 1 TB disk + 4x Nvidia GTX 1080 GPUs
-
2 P100 GPU compute nodes (gpup01-02): 20 Intel E5-2640v4 2.4GHz cores, 128GB RAM, 1 TB disk + 1x Nvidia P100GPU
The machine has 35 nodes including the login and storage node.
Skylight.cluster (login node)
-
(2) Intel Broadwell E5-2640v4, 2.40GHz, 10-Core, 95Watt Processor(s)
-
128GB Memory (8 x 16GB), 6.4GB of memory per core
-
(2) 1TB Hard Drive(s) (mirrored RAID 1)
This login node is accessible via SSH from anywhere. Most system services run on this node and it should only be used to compile code, push changes to the compute nodes, set up calculations and perform light analysis. Please do not run any interactive jobs on this node. All jobs should be submitted from this host.
IIO (storage node)
-
(2) Intel Broadwell E5-2640v4, 2.40GHz, 10-Core, 95Watt Processor(s)
-
64GB Memory (8 x 8GB)
-
(27) 1.2TB SATA HDDs (RAID 6, 23TB Usable Storage)
This is the main storage node where /home and /usr/local directories reside. The login and all compute nodes mount /home and /usr/local from this machine. You should never need to log into this machine and do any “work” on it. Overloading this node with other user processes will degrade the performance of the cluster as a whole.
Compute nodes
The system has 22 stdmem (128GB RAM/node) nodes, 3 himem (512GB RAM/node) nodes, 6 GPU-containing four GTX 1080 GPUs each, and 2 nodes with 1 P100 GPU each.
STDMEM nodes
22 nodes (called node01-node22)
-
(2) Intel Broadwell E5-2640v4, 2.40GHz, 10-Core, 90Watt Processor(s)
-
128GB Memory (8 x 16GB), 6.4GB of memory per core
-
(1) 1TB SATA HDD
HIMEM nodes
3 nodes (called himem01-03)
-
(2) Intel Broadwell E5-2680v4, 2.40GHz, 14-Core, 120Watt Processor(s)
-
512GB Memory (24 x 32GB), 18.3GB of memory per core
-
(1) 1TB SATA HDD
GPU nodes with NVIDIA GTX 1080 GPUs
6 nodes (called gpu01-06)
-
(2) Intel Broadwell E5-2640v4, 2.40GHz, 10-Core, 90Watt Processor(s)
-
64GB Memory (8 x 8GB), 3.2GB of memory per core
-
(1) 1TB SATA HDD
- (4) NVIDIA GeForce GTX1080, 8GB GDDR5X, 2560 CUDA cores
GPU nodes with NVIDIA Tesla P100 GPUs
2 nodes (called gpup01-02)
-
(2) Intel Broadwell E5-2640v4, 2.40GHz, 10-Core, 90Watt Processor(s)
-
128GB Memory (8 x 16GB), 6.4GB of memory per core
-
(1) 1TB SATA HDD
- (1) NVIDIA Tesla P100 PCI-E 12GB GDDR5 Passive Single GPU
A brief comparison of the two GPU types in Skylight is shown in the next table.
Features | GeForce GTX 1080
(Pascal architecture) |
Tesla P100
(Pascal architecture) |
---|---|---|
Number and Type of GPU | 1 Pascal GP104 | 1 Pascal GP110 |
Peak double precision floating point performance | ~0.3 TFLOPS* | 4.7 TFLOPS* |
Peak single precision floating point performance | 8.2 TFLOPS | 9.3 TFLOPS |
Memory bandwidth (ECC off) | 400 GB/s | 549 GB/s |
Memory size (GDDR5X) | 8 GB | 12 GB |
CUDA cores | 2560 | 3584 |
Access
Your login credentials and home directories have been migrated from Marcy to Skylight. That allows users with accounts on Marcy to automatically access Skylight as well.
Skylight is accessible from anywhere via SSH using SSH keys only. You will not be able to log in to Skylight directly using passwords. Here are three ways you can log in to Skylight.
- Using SSH keys: if you log in to Marcy with SSH keys from a certain machine, you should be able to log in directly to Skylight via
ssh username@skylight.furman.edu
- Through Marcy in two steps: You can log in to Marcy first and hop into Skylight
ssh username@marcy.furman.edu
ssh skylight
- Through Marcy in one step: You can tunnel your SSH traffic to Skylight through Marcy
ssh -t username@marcy.furman.edu ssh skylight
Direct SSH to Skylight using passwords is currently unavailable. As noted above, a secure and convenient way to access Skylight is by tunneling through Marcy or using SSH keys.
Generating SSH Keys
SSH keys allow a user on a local computer/client to log in to a remote SSH server without having to enter a password. This method of user authentication is preferred over traditional password authentication for the following reasons.
- Your passwords won’t be transmitted over insecure networks where they could be intercepted or cracked
- Brute-force password attacks by outsiders won’t work on a system that doesn’t accept passwords
- Users won’t have to enter their passwords to log in every time. That’s very convenient from users’ point of view.
- Once you have set up your SSH keys, other secure shell services relying on
openSSH
such asrsync, sftp, scp, ...
will be able to work without passwords as well.
Two words of caution first:
- You would only need to set up SSH keys once per local computer per user. The local computer needs to be a personal laptop/desktop, but a research group workstation is acceptable although not encouraged.
- Please do not set up SSH keys on public or non-research computers. This includes shared computers in public spaces like libraries, internet cafés, … etc. It also includes computers owned by friends and family (your parents, grandparents, boyfriend/girlfriend, BFFs … etc). If such an activity is detected, your account will be deactivated immediately.
To access Marcy/Skylight using SSH keys from your local computer, you first need to generate a public-private SSH key pair on your local computer, then transmit the public key to Marcy/Skylight.
Here are instructions on how to do that. The instructions assume you are on a Mac or Linux machine.
- Check if you already have SSH keys on your local machine. SSH keys are generally saved at ~/.ssh directory.
- Enter ‘
ls ~/.ssh
‘. If you see files named ‘id_rsa
‘ and ‘id_rsa.pub
‘, move to Step 2 to copy the SSH keys.username@local-machine|~/> ls ~/.ssh
authorized_keys id_rsa id_rsa.pub known_hosts
- If
~/.ssh
does not exist or contain ‘id_rsa
‘ and ‘id_rsa.pub
‘, move to Step 3 to generate new SSH keysusername@local-machine|~/> ls ~/.ssh
- Enter ‘
- Copy SSH keys: You already have SSH keys on your local computer and you will just need to copy them to Marcy/Skylight.
- Copy the SSH key to Marcy.
username@local-machine|~/> cat ~/.ssh/id_rsa.pub | ssh username@marcy.furman.edu 'cat >> .ssh/authorized_keys'
- Log into Marcy and copy the key to Skylight.
username@local-machine|~/> ssh username@marcy.furman.edu
username@marcy|~/> tail -n 1 ~/.ssh/authorized_keys | ssh skylight 'cat >> ~/.ssh/authorized_keys'
- Copy the SSH key to Marcy.
- Generate and copy SSH keys:
- Generate an SSH key on your local computer
username@local-machine|~/> ssh-keygen -b 1024 -t rsa -N ""
That should generate a public-private key pair and save it ~/.ssh. Check to make sure it is there.
username@local-machine|~/> ls ~/.ssh
authorized_keys id_rsa id_rsa.pub known_hosts
- Copy the key to Marcy.
username@local-machine|~/> cat ~/.ssh/id_rsa.pub | ssh username@marcy.furman.edu 'cat >> .ssh/authorized_keys'
- Log into Marcy and copy the key to Skylight.
username@local-machine|~/> ssh username@marcy.furman.edu
username@marcy|~/> tail -n 1 ~/.ssh/authorized_keys | ssh skylight 'cat >> ~/.ssh/authorized_keys'
- Generate an SSH key on your local computer
- Test: you should be all set to SSH to Skylight and Marcy using SSH keys. Try logging in.
ssh username@marcy.furman.edu
ssh username@skylight.furman.edu
If you have any questions or encounter any problems, please email support@mercuryconsortium.org
Once you have set up your SSH keys, other secure shell services relying on openSSH
such as rsync, sftp, scp, ...
will be able to work without passwords as well. If you use file transfer applications like CyberDuck or Filezilla, they should know where to look for your keys. If you have any trouble, please email support@mercuryconsortium.org.
Available Software
The cluster has a lot of software stored in /usr/local/Dist and more will be added as necessary. Some essential software and environments are set at login. but the vast majority of the scientific software is provisioned using the Modules software environment management tool. When you load a specific application module, the proper environmental variables, dependencies and paths that are needed to execute that application are set and provided for you. The most recent version(s) of commonly used applications in computational chemistry are compiled to run optimally on Skylight and and provided as modules. If you need other applications or older versions of these applications, please send a request to support@mercuryconsortium.org and we will do our best to make them available to you quickly.
Chemistry
The following applications are freshly compiled and tested to run on Skylight. The applications’ capability to run on GPUs has not been tested extensively yet except for the case of AMBER16. We’ll add GPU support for all capable applications over time.
-
Gaussian16 A.03
-
Gaussian09 A.02 + D.03
- Orca 3.0.3 + 4.0.0
- GAMESS 2016
- AMBER 12, 14
- AMBER 16 w/ GPU support for both NVIDIA GTX 1080 and P100 cards
- LAMMPS 03-31-2017
- NAMD 2.12 w/ GPU support
- CP2K 2.6 + 3.0 + 4.1
- Desmond 2016
- libEFP
The following will be available shortly:
-
NWchem
-
PSI4
-
CFOUR
- GROMACS
-
OpenMM
- Quantum Espresso
-
Siesta
-
CPMD
- DFTB+
-
cluster
General Tools
If you want to compile your own code, these general libraries are available.
-
Intel Compilers (16, 17)
-
Intel MKL libraries (16, 17)
- Intel MPI (17)
- GCC (4.8.5)
-
OpenMPI (1.6, 1.8, 2.0)
-
MVAPICH2 (2.2)
- MPICH (3.3)
-
Python (2.7.5, 3.3)
Software Provisioning using Modules
Modules are used to dynamically modify the user’s shell environment as needed. You can see what modules are loaded by default by executing ‘module list’ right after logging in. Here are common module commands and their description:
module avail | List the available modules. Note that if there are multiple versions of a single package that one will be denoted as (default). If you load the module without a version number you will get this default version. |
module whatis | List all the available modules along with a short description. |
module load MODULE | Load the named MODULE. |
module unload MODULE | Unload the named MODULE, reverting back to the OS defaults. |
module list | List all the currently loaded modules. |
module help | Get general help information about modules. |
module help MODULE | Get help information about the named module. |
module show MODULE | Show details about the module, including the changes that loading the module will make to your environment. |
The next example demonstrates the use of modules to set up one’s environment to do a GPU calculation using AMBER16
Let us start by seeing what modules are loaded by default
user@master[~] module list
Currently Loaded Modulefiles:
1) null 2) modules 3) use.own
AMBER16 is not loaded by default. So, if one tries to find AMBER16 binaries, they would not be available.
user@master[~] which pmemd.cuda
pmemd.cuda not found
AMBER16 is not loaded by default. So, if one tries to find AMBER16 binaries, they would not be available.
user@master[~] module load amber/16-cuda
user@master[~] which pmemd.cuda
/usr/local/Dist/amber/amber16/bin/pmemd.cuda
Now that the right binary is in your path, you can run AMBER16.
You can execute module avail
to see available modules and get documentation about running these modules through module show module_name
user@master[~] module avail
--------------------- /usr/local/Modules/modulefiles ---------------------------------------------------------------------------------- amber/12 cpmd/3.17.1 gamess/default module-info psi4/07-13 amber/14 cpmd/default gaussian/default modules psi4/default amber/16 cuda/6.0 gaussian/g09-A02 namd/2.12-ib psi4/miniconda amber/16-cuda cuda/8.0 gaussian/g09-D01 namd/2.12-ib-cuda python/2.7.13 amber/default cuda/default gaussian/g16-A03 namd/2.12-omp python/2.7-intel cfour/1.0 desmond/2016-4 gromacs/5.0-beta namd/default python/3.3.0 cluster/1.2 dftb+/1.2.2-mpi InVEST null qe/6.1 cluster/1.3 dftb+/1.2.2-serial lammps/3-2017 nwchem/6.3 scalapack/2.0.2-gnu cluster/default dock6/6.7 libefp/1.4.2 nwchem/6.5 siesta/3.2 cp2k/2.6.2 dot miniconda/psi4 nwchem/6.6 use.own cp2k/3.0 espresso/5.1 mlpr/2015.1.14 nwchem/default cp2k/4.1 fftw/3.3.3 mlpr/default openmm/5.4 cp2k/default gamess/2016 module-git openmm/6.1 -------------------------- /home/user/privatemodules --------------------------------------------------------------------------------------- null
user@master[~] module show gamess/2016
------------------------------------------------------------------- /usr/local/Modules/modulefiles/gamess/2016: module-whatis Adds `/usr/local/Dist/gamess/16' to your 'PATH/LD_LIBRARY/MANPATH' environment module-whatis To run Gamess calculations, use the rungamess.csh script. module-whatis Usage: rungms inputfile ScratchDirName NumberOfProcesses/CoresToUse module-whatis Eg: rungms test.inp myScrDir 16
module-whatis Eg: rungms exam01.inp $SLURM_JOB_ID $SLURM_NTASKS
module-whatis Or adapt the script (/usr/local/Dist/bin/rungamess-16.csh for your purposes. module load intel impi prepend-path PATH /usr/local/Dist/gamess/16 -------------------------------------------------------------------
Running Calculations
Slurm Job Scheduler
The table below shows a summary of SLURM commands. These commands are described in more detail below along with links to the SLURM doc site.
SLURM | SLURM Example | |
---|---|---|
Submit a batch job | sbatch | sbatch run.slurm |
Run a script interatively | srun | srun --pty -p interact -t 10 --mem 1000 /bin/bash /bin/run.csh |
Kill a job | scancel | scancel 1542 |
View status of queues | squeue | squeue -u username |
A typical batch submission file to run a Gaussian calculation would look like this:
#!/bin/tcsh #SBATCH -p stdmem # Queue/Partition to submit to #SBATCH -n 20 # Number of cores or tasks per node (--ntasks-per-node=20) #SBATCH -N 1 # Number of nodes (--nodes=1) ;should be 1 in most cases) #SBATCH -t 48:00:00 # Runtime in D-HH:MM:SS #SBATCH --mem=100G # Total Memory needed for all cores (see also --mem-per-cpu) #SBATCH -o jTest_%j.err # File to which STDOUT & STDERR will be written #SBATCH --job-name="jTest" # Job name that will appear in the queue #SBATCH --mail-type=END # Type of email notification- BEGIN,END,FAIL,ALL #SBATCH --mail-user=user@host.edu # Email to which notifications will be sent source /usr/share/Modules/init/tcsh #necessary to make sure modules work in TCSH shell set echo module load gaussian/g16-A03 #Load the right Gaussian module setenv GAUSS_SCRDIR /scratch/$GROUP/$USER #Optionally set scratch directory path g16 test.com #Run a test calculation
Slurm Queues
The queue policies are kept simple at the moment, but more features will be added over time to ensure optimal and fair use.
Submit Queue |
Execution Queue |
Nodes | Available Cores |
Max Wallclock |
Max Memory |
Run Limit per User | Restrictions |
---|---|---|---|---|---|---|---|
stdmem | stdmem | node01-22 | 20 | unlimited | 128GB | – | None |
himem | himem | himem01-03 | 28 | unlimited | 512GB | – | None |
gpu | gpu | gpu01-06 | 20 | unlimited | 64GB | – | need to request a GTX 1080 GPU |
gpup | gpup | gpup01-02 | 20 | unlimited | 128GB | – | need to request a P100 GPU |
The nodes are divided based on their specs as follows.
Example Runs and Template Submission Files
The easiest way to learn how to run calculations is to look at the examples provided below. The Slurm batch submission files are named run.slurm
and all the input and output files from the particular calculation are also provided in the same directory. Good luck and happy computing!
![]() |
Name | Last modified | Size | Description |
---|---|---|---|---|
|
||||
– | ||||
![]() |
AMBER/ | 2017-06-21 09:23 | – | |
![]() |
GAMESS/ | 2017-06-23 16:47 | – | |
![]() |
Gaussian/ | 2017-06-26 14:10 | – | |
![]() |
MOPAC/ | 2017-06-26 14:24 | – | |
![]() |
NAMD/ | 2017-06-25 22:29 | – | |
![]() |
NWChem/ | 2017-06-26 14:13 | – | |
![]() |
ORCA/ | 2017-06-19 18:04 | – | |
![]() |
Psi4/ | 2017-06-26 14:12 | – | |
![]() |
cp2k/ | 2017-06-25 19:30 | – | |
![]() |
dftb+/ | 2017-06-26 14:13 | – | |
![]() |
lammps/ | 2017-06-25 19:31 | – | |
![]() |
libEFP/ | 2017-06-19 11:28 | – | |
|
